Trinity Garden Office

The Trinity is a single room cabin with large double glazed picture windows and fully glazed doors and makes an ideal garden office.

The low profile 2.34m (7½ ft) single pitch roof minimises the size impact on your garden whilst still giving an airy, spacious and well proportioned room of 19.3sqm (208 sqft). The Trinity cabin is constructed with 44mm double tongue and groove machined timbers with chalet joints at the corners giving a rigid airtight structure.
The standard kit produces a garden room almost out of the box, but as with all our cabins some kind of base is necessary, see our base construction page for more details.
If the cabin is intended for everyday usage all year round some insulation in the floor and ceiling would be advised to minimise heating costs. Ceiling insulation also helps to keep the interior of the cabin cooler hot Summer days.
Under floor insulation is best added when the cabin is being constructed, ceiling insulation can be included in the initial construction or fitted later.

Trinity Log Cabin 19.3sqm

Price Options for the Trinity Garden Office

Kit Price €4,500

Fully assembled ready to use €6,250

Complete kit of the parts needed to build this superb timber garden office

  • kit price includes kerbside delivery (may be subject to a surcharge)
  • remember to order roofing felt (not included)
  • remember to order insulation if required
This price includes:

  • delivery most areas (may be a surcharge for remote areas)
  • foundation/footings and subframe,
  • heavy duty roofing felt,
  • underfloor insulation
  • single external coat of preservative/lacquer/woodlands

For ceiling insulation options please call or view our insulation page.

Wall thickness Wall Thickness
44mm single timber
Inside area / Under roof area Floor Area
19.3m2
Double door Double door
1.51m x1.75m
Window Windows
4x 0.6m x 1.11m
Ridge height Height to front
2.34m
Volume / Under roof volume Cubic volume
41.9m3
Wall height Height to back
2m
Roof overhang front Roof overhang
front 0.45m
Foundation dimension Foundation base needed
3.8m x 5.3m
Roof pitch Roof area 25.4m2
Pitch 5.2°

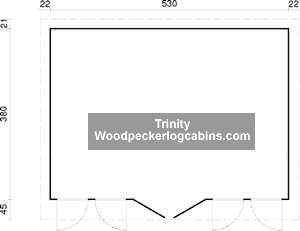

Trinity floor plan

Trinity Log Cabin floor plan
