Garage Low Profile

This flat roofed low profile garage is a modern, contemporary style, with sleek lines and elegant proportions. Designed to keep your car dry and safe, yet look good as well.

Despite its budget price, this garage has many high-spec features. The 44mm timber offers a high level of protection against the elements and freezing temperatures. The slow-grown spruce as used in all our cabins offers a high level of insulation and durability.

The glass used in the door panels and side windows is privacy glass. This means the light comes in so you can see what you’re doing, but anybody outside can not see you, your car and any other garage contents and is therefore less likely to attract attention from passing prying eyes. This means it can also be used as secure but well-lit, workshop or storage room.

This garage is available with standard hinged wooden doors or a timber clad up&over door. The garage is available as a kit with everything included, doors, windows, screw and hinges etc.. All you need are some basic tools, hammer/mallet screwdriver, measuring tape and spirit level. If you are not happy erecting the garage yourself, even though the construction is designed to be simple and quick even if you’re not a DIY aficionado we can organise this for you.

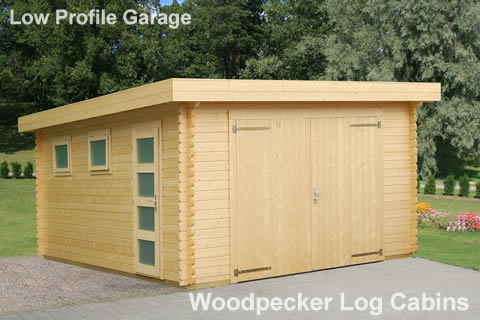

Low Profile Flat Roof Garage

Price Options for the Low Profile Timber Garage

Kit Prices

  • €3845 with hinged door
  • €3995 with Up and Over Door
  • €3500 without door

Fully assembled ready to use

  • €6845 with hinged door
  • €6995 with Up and Over Door
  • €6500 without door
Complete kit of the parts needed to build this superb timber log garage

  • kit price is for collection
  • kerbside delivery from €50
  • remember to order roofing felt (not included)
  • remember to order insulation if required
This price includes:

  • delivery Dublin area (POA other areas)
  • foundation and concrete floor,
  • heavy duty roofing felt,
  • external coat of preservative/lacquer/woodlands

Optional extras for timber garage

We can also undertake these additional options, please ask when ordering

  • Reinforced concrete floor
  • Torch-on roofing felt
  • install electricity sockets and lights
  • install plumbing
  • path to side door
  • shelving
  • roof insulation

Specifications for Low Profile timber garage

Wall thickness Wall Thickness
44mm single timber
Inside area / Under roof area Floor Area
19m2
Single door Side door 4 panel glazed
0.74m x 1.82
Window Windows
2 of 0.7 x 0.43m
Ridge height Height to apex
2.43m
Volume / Under roof volume Cubic volume
42.2m3
Wall height Height to eaves
2.28m
Roof overhang front Roof overhang
front 0.15m
Foundation dimension Foundation base needed
3.6m x 5.5m
Roof pitch Roof area 24.5m2
Roof pitch 1.8º

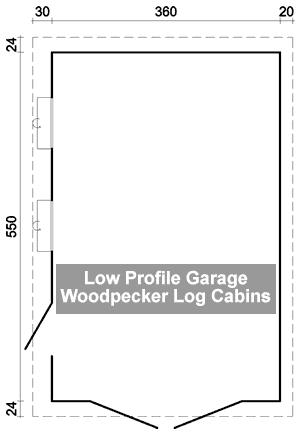

Floor Plan for Low profile timber garage

Low Profile Garage Floor Plan
