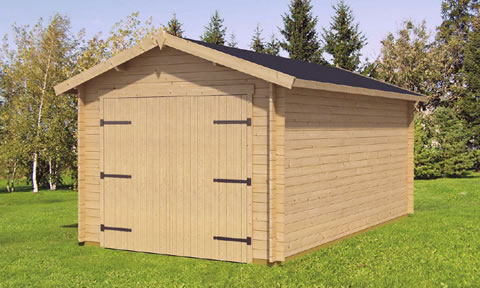

Mauritius

Mauritius timber garages have a double main doors with 3 robust T-hinges to each door. It is available in 3 wall thicknesses 28mm, 34mm and 44mm.

Not having a window removes a possible security weakness and protects its contents from prying eyes.

Specifications for Mauritius 28 timber garage

	Wall Thickness 28mm single timber		Floor Area 16.4m2
	Double door Solid timber no glass		Windows None
	Height to apex 2.62m		Cubic volume 38.7m3
	Height to eaves 2.11m		Roof overhang front 0.3m
	Foundation base needed 3.3m x 5.1m

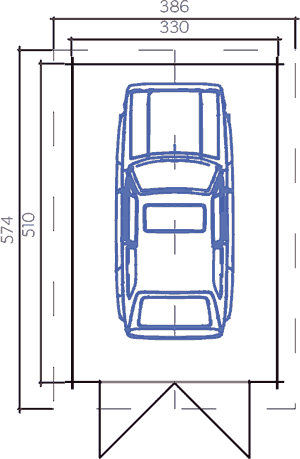

Floor Plan for Mauritius 28

Specifications for Mauritius 34 timber garage

	Wall Thickness 34mm single timber		Floor Area 16.3m2
	Double door Solid timber no glass		Windows None
	Height to apex 2.62m		Cubic volume 38.5m3
	Height to eaves 2.11m		Roof overhang front 0.3m
	Foundation base needed 3.3m x 5.1m

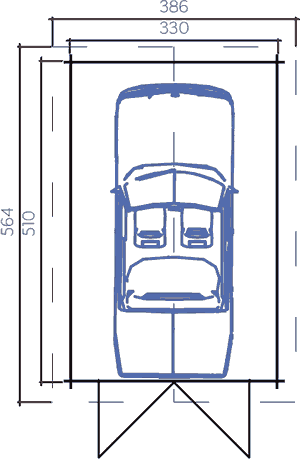

Floor Plan for Mauritius 34

Specifications for Mauritius 44 timber garage

	Wall Thickness 44mm single timber		Floor Area 16.1m2
	Double door Solid timber no glass		Windows None
	Height to apex 2.62m		Cubic volume 38.1m3
	Height to eaves 2.11m		Roof overhang front 0.3m
	Foundation base needed 3.3m x 5.1m

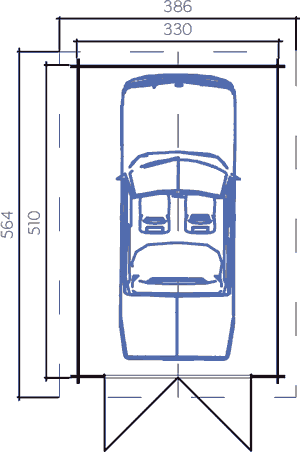

Mauritius 44 Floor Plan
